Structure
Aluminum profile system superstructure, covered with aluminum sheets, closed with roller shutter system and tail lift.
The superstructure is 3-divided into:

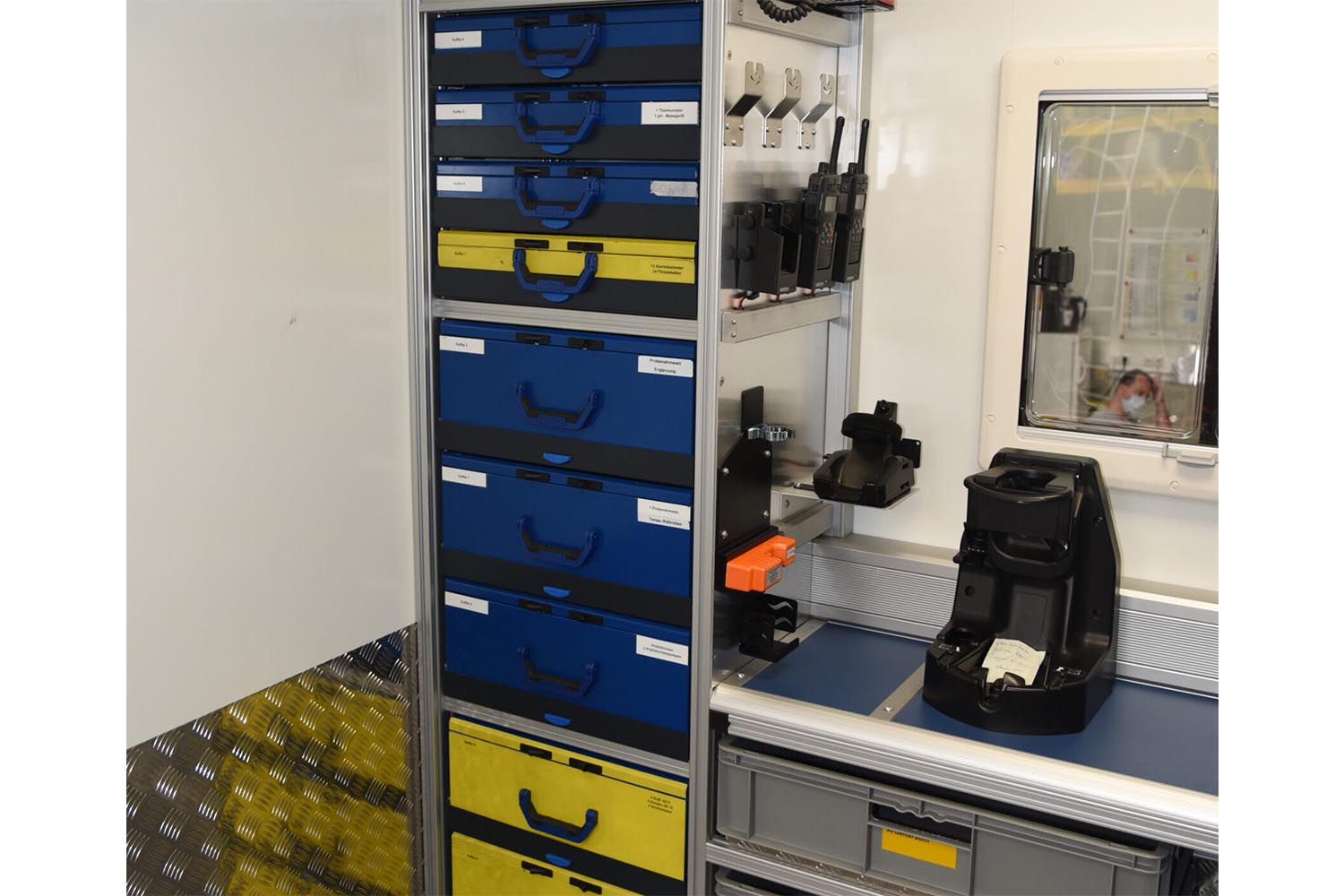

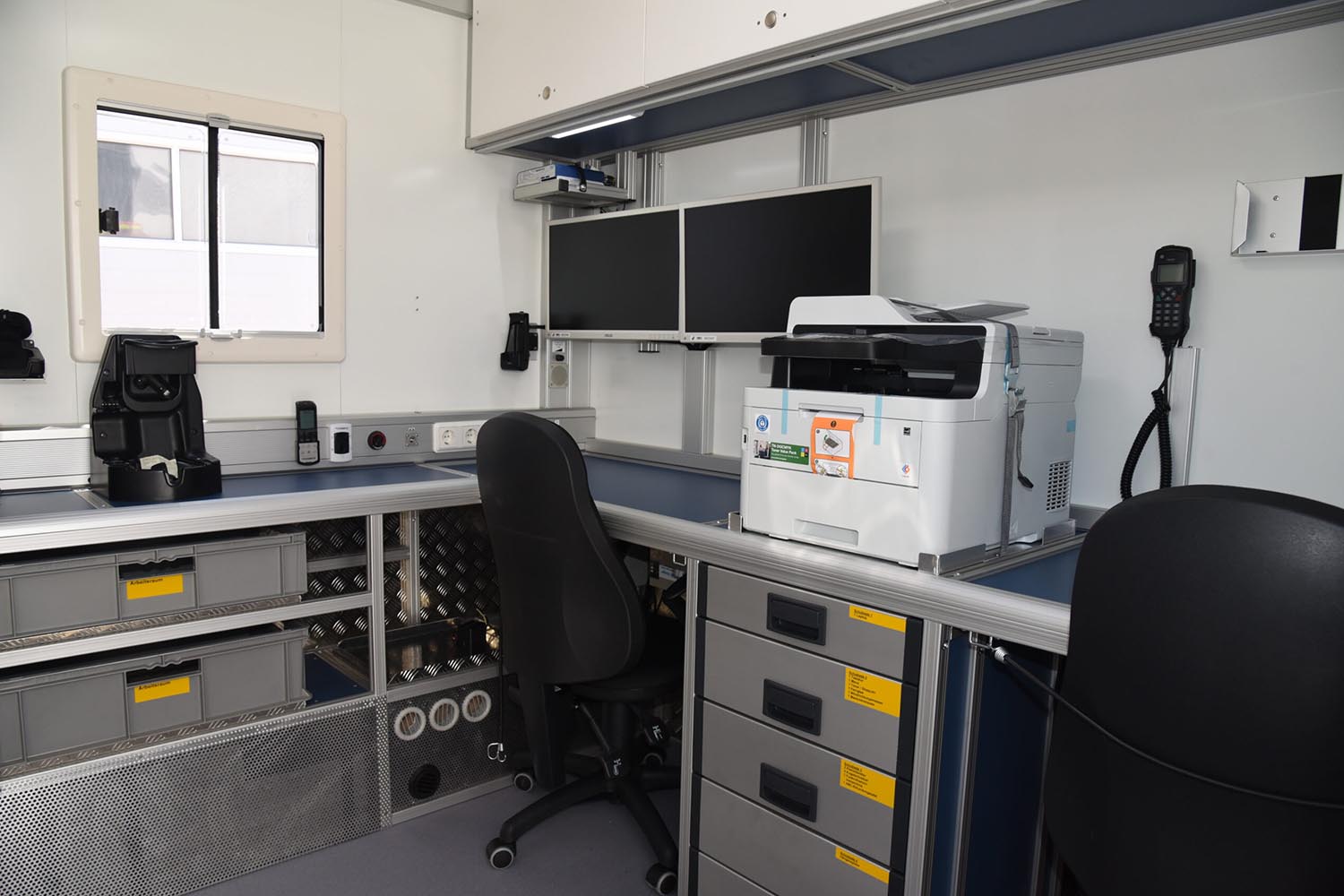

working compartment, equipment compartment and rear equipment compartment
- Body deep-drawn between the axles
- Foldable equipment compartment steps
The data at a glance
MB ATEGO 1327 F 4×2 V 08Chassis
220 kW (272 HP) EURO VIEngine Power
12.000 kgpermissible total weight

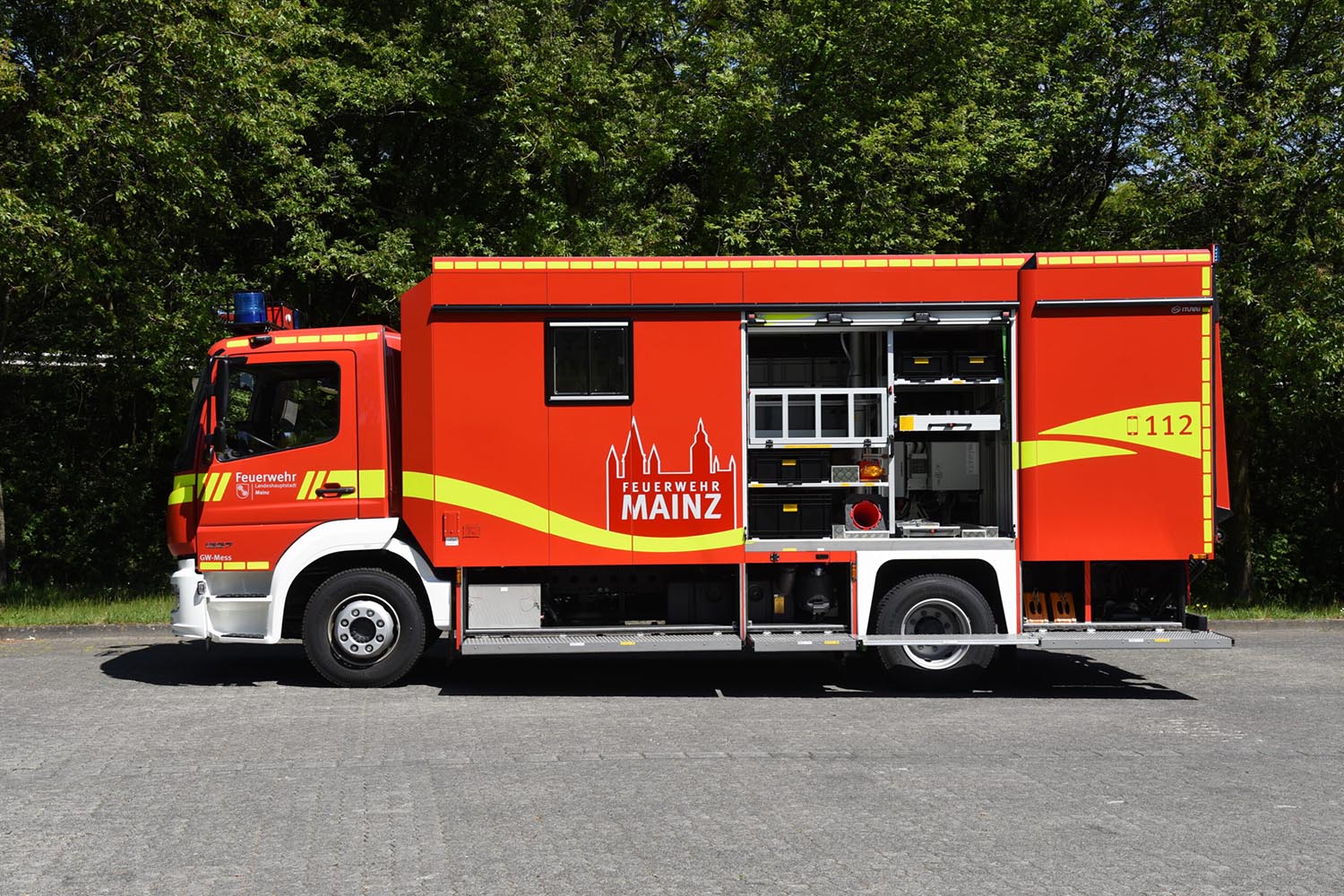

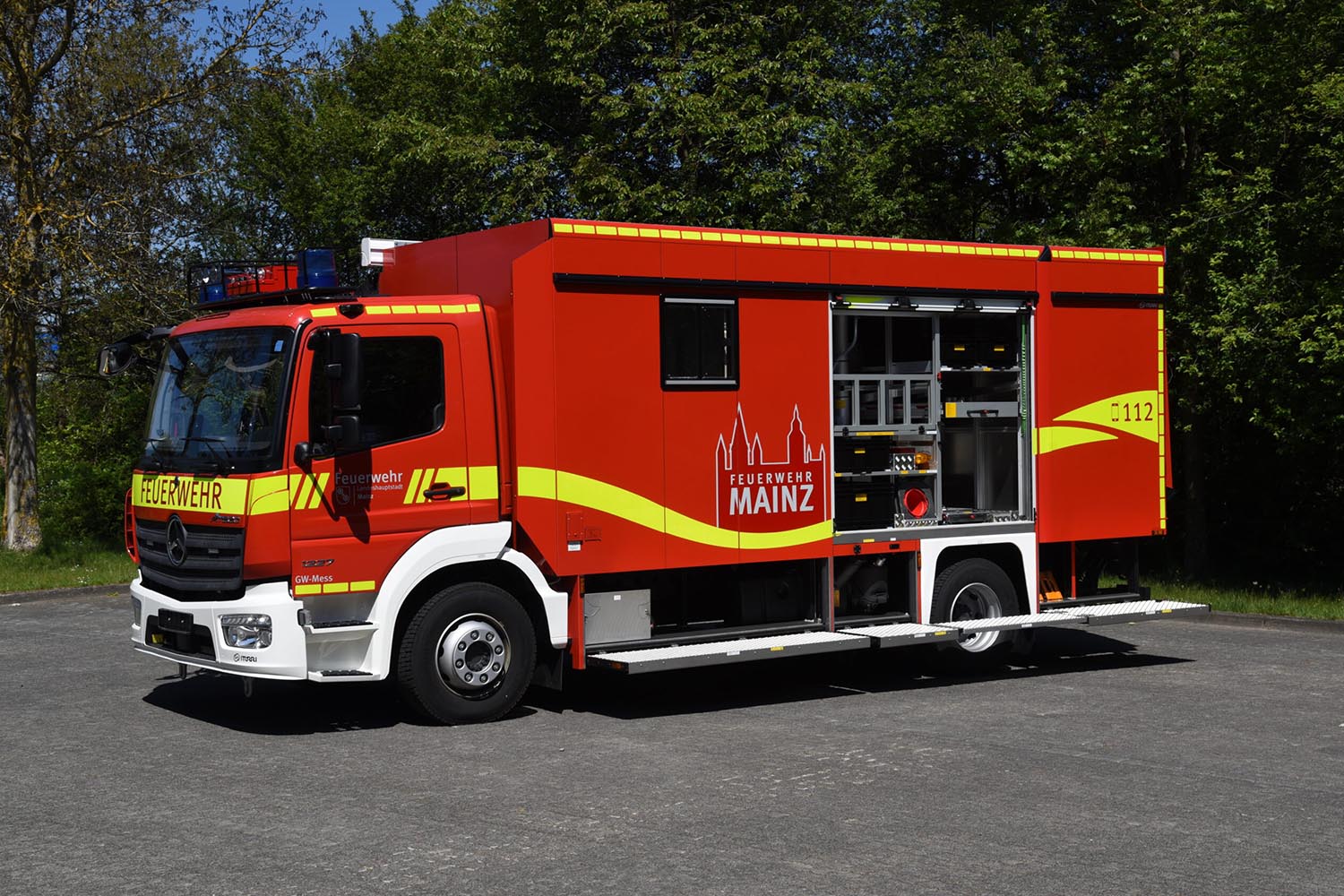

| Product name | Measuring Truck – 6187 |
|---|---|
| Chassis | MB ATEGO 1327 F 4×2 V 08 |
| Machine status | New |
| Engine power | 220 kW (272 HP) EURO VI |
| Length [in mm] | 7820 |
| Width [in mm] | 2550 |
| Height [in mm] | 3300 |
| Wheelbase [in mm] | 4160 |
| Gross vehicle weight [in kg] | 12000 |
Crew
1+1
Year of construction
2020

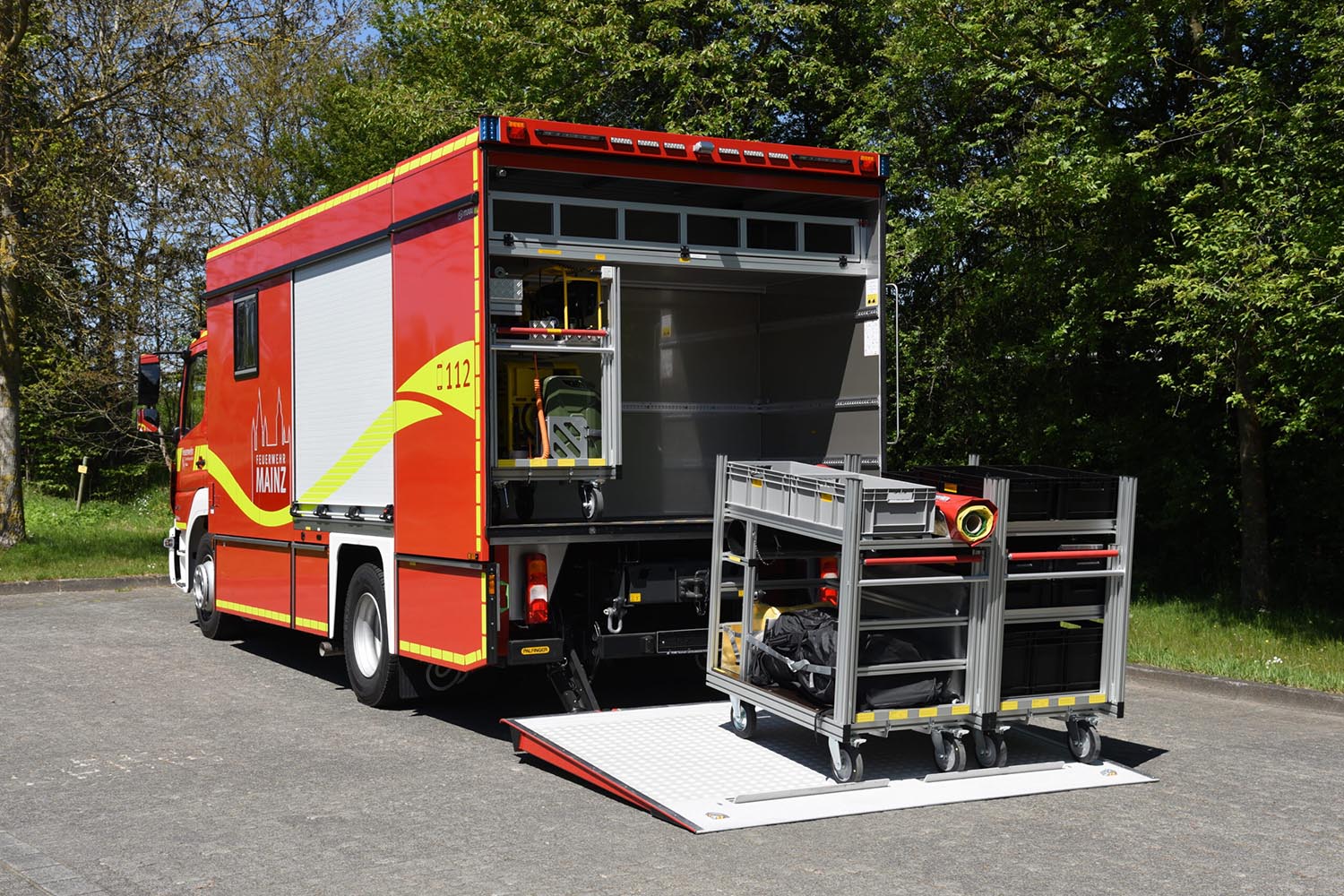

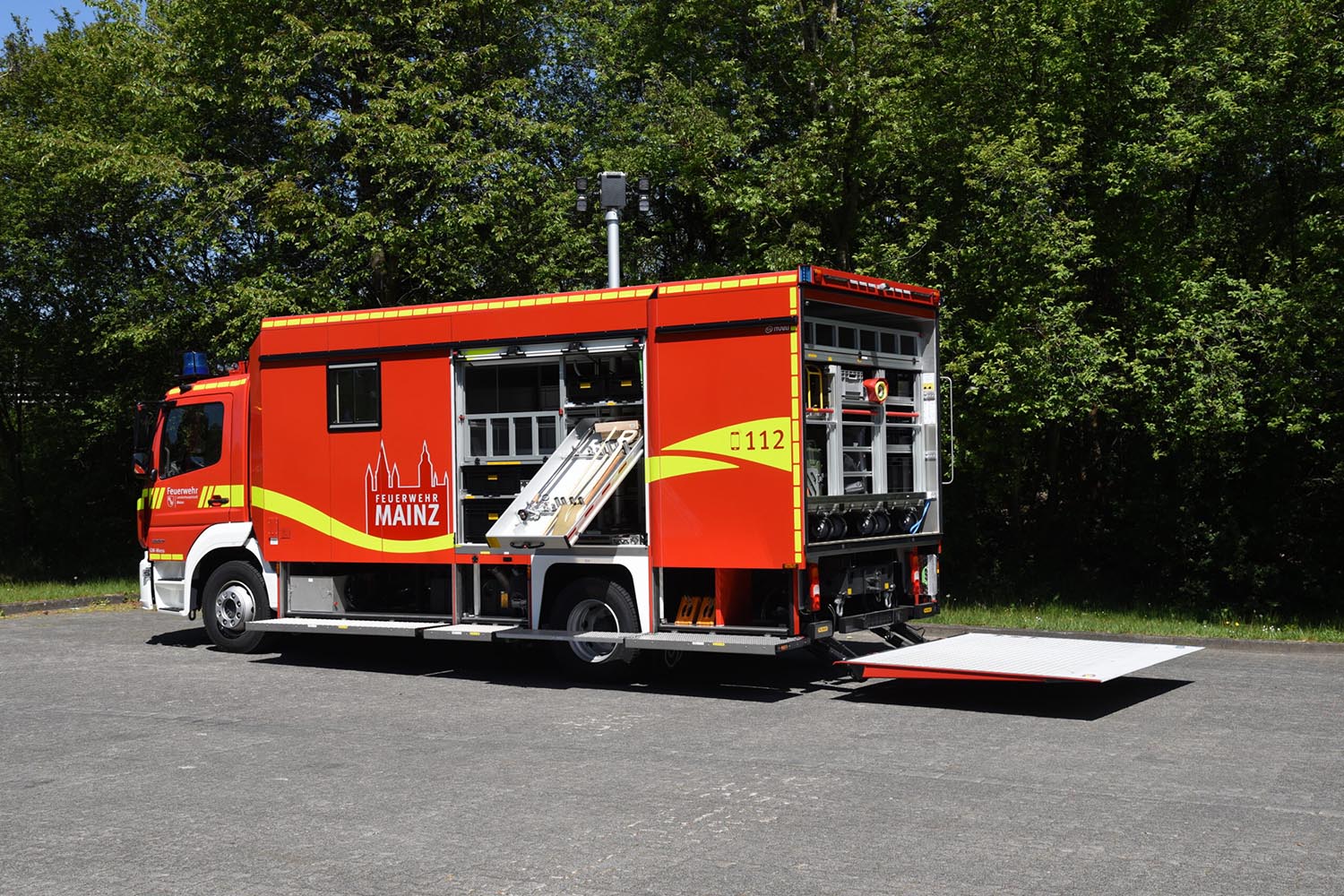

- Tail lift in the rear, load capacity 1,500 kg
- Self-supporting box awning, width: approx. 6,000 mm, drop: approx. 2,500 mm

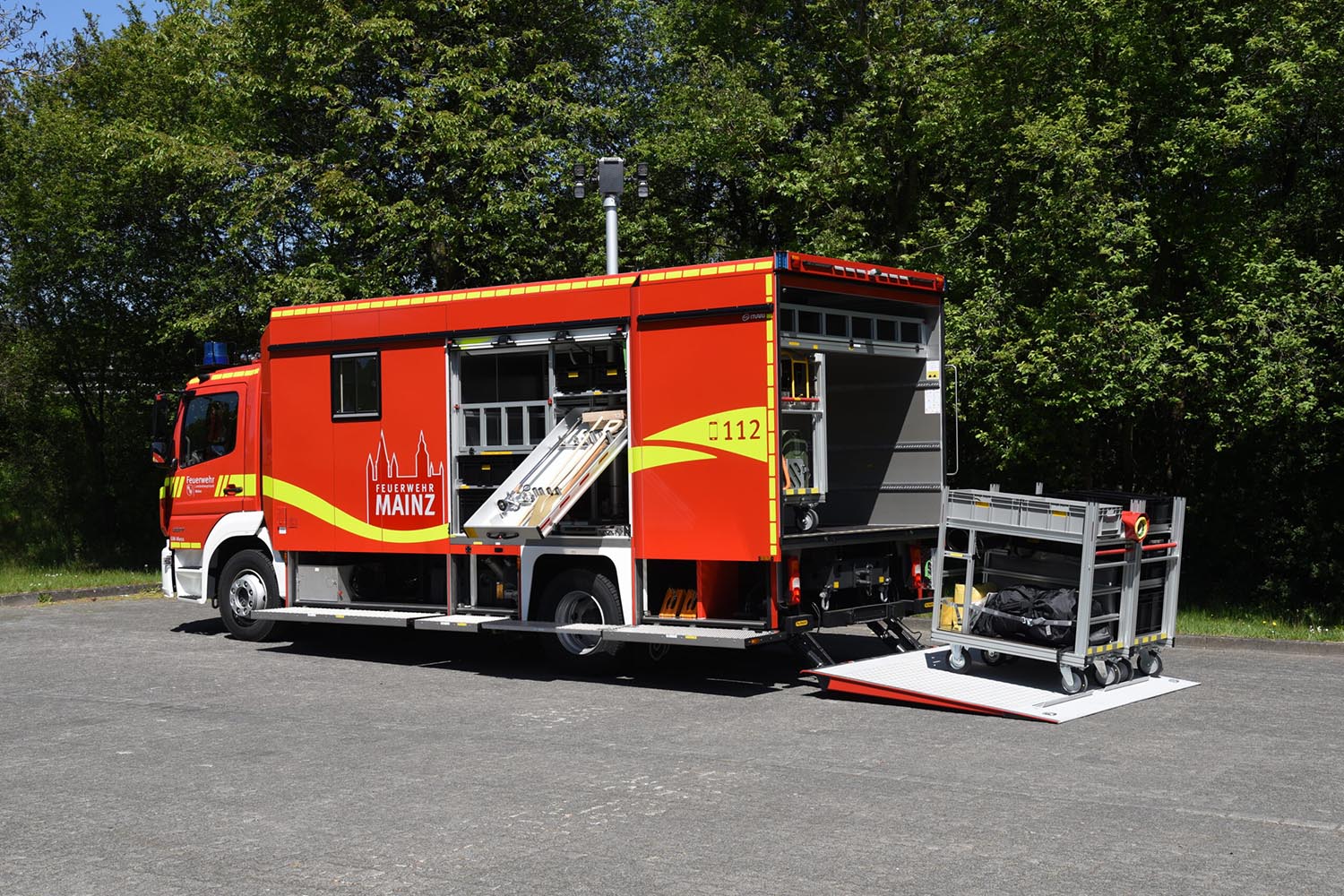

- Pneumatic light mast equipped with 4 x 50 W (24 V)
- LED spotlight unit; total light output: 16,800 lumens
- Hygiene station
- Stowage box air conditioning system
- Parking heater
- Roll container "electricity"
- Roll container "Tent / Decontamination"
- Roll container "Sealing / Collection"
